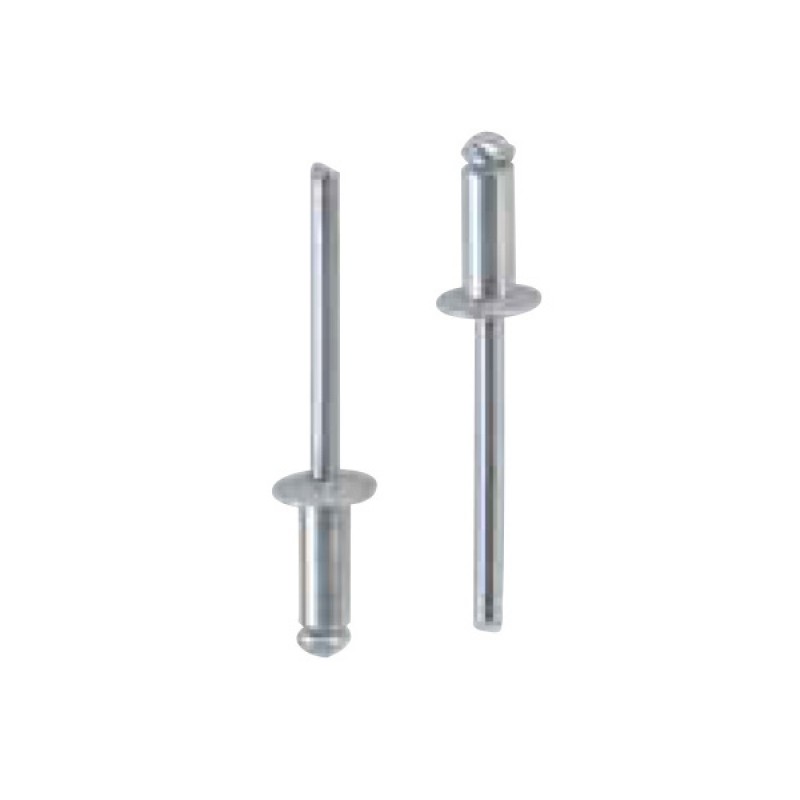

MFX 1301 - Masterfix заклепка полукруглая головка

MFX 1301 - Masterfix заклепка полукруглая головка

Материал:
Алюминий [AlMg3,5]
Сталь оцинкованная



Длинна (мм)

  ø d l
[+0,3/-0,2]
Ø dk k Ø dm p

N

N

13013208

3,2

[+/-0,15]

Ø [3,5 min]

[3,7 max]

8,0 0,5 - 1,0 6,5
[+/-0,2]
1,0
[ +/-0,1]
~1,80 ≥27 750 820
3210 10,0 1,0 - 3,0
3212 12,0 3,0 - 5,0
3216 16,0 7,0 - 9,0
3218 18,0 9,0 - 11,0
13014010

4,0

[ +/-0,15]

Ø [4,3 min]

[4,5 max]

10,0 1,5 - 5,0 8,0
[+/-0,4]
1,2
[ +/-0,2]
~2,10 ≥27 1.140 1.280
4012 12,0 4,0 - 6,5
4014 14,0 6,0 - 9,0
4016 16,0 8,0 - 11,0
4018 18,0 10,0 - 13,0
4020 20,0 12,0 - 15,0
13014810

4,8

[ +/-0,15]

Ø [5,2 min]

[5,3 max]

10,0 1,5 - 4,0 9,0
[+/-0,4]
1,4
[ +/-0,2]
~2,70 ≥27 2.450 2.100
4812 12,0 2,0 - 6,0
4814 14,0 4,0 - 8,0
4816 16,0 6,0 - 10,0
4818 18,0 8,0 - 12,0
4820 20,0 10,0 - 14,0
4822 22,0 12,0 - 16,0
4825 25,0 16,0 - 19,0
4830 30,0 19,0 - 24,0
4835 35,0 24,0 - 29,0
4840 40,0 29,0 - 34,0
