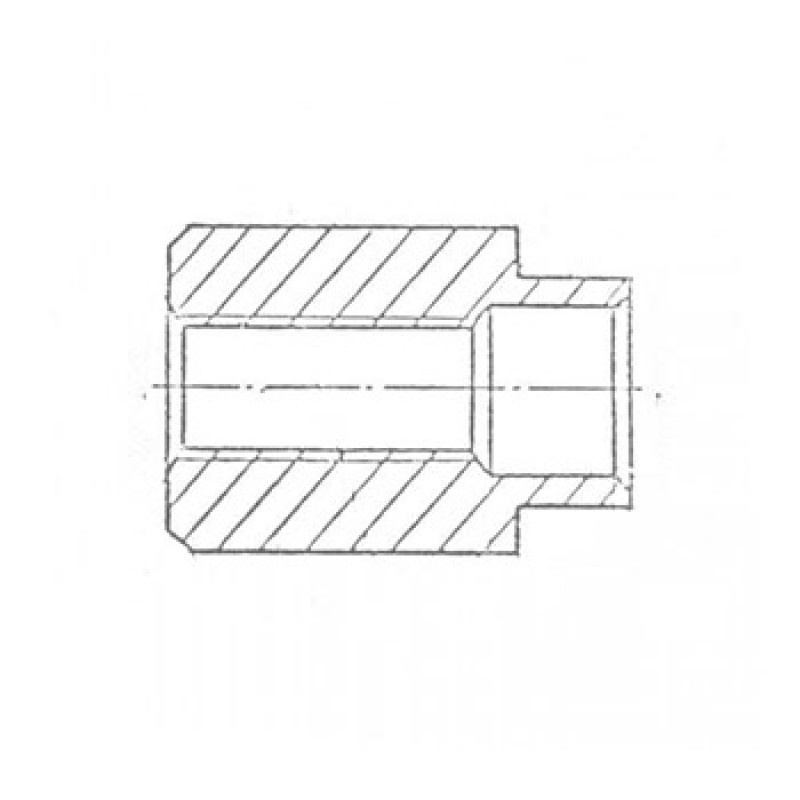

ОСТ 92-8954-78 - Стальные втулки резьбовые

ОСТ 92-8954-78 - Стальные втулки резьбовые

Материал: сталь


Таблица 1

Резьба d d1 D D1 L l l1 Масса, г
номин. пред.откл. номин. пред.откл.
2 2.2 5 3.0 3.5 1.0 +0.25 1.5 +0.25 0.353
2 2.2 5 3.0 4.0 1.2 +0.25 2.0 +0.25 0.397
2 2.2 5 3.0 4.0 1.6 +0.25 2.0 +0.25 0.366
2 2.2 5 3.0 4.5 2.0 +0.25 2.5 +0.25 0.379
2 2.2 5 3.0 5.0 2.5 +0.25 3.0 +0.25 0.392
2 3.0 6 3.8 3.5 1.0 +0.25 1.5 +0.25 0.503
2.5 3.0 6 3.8 5.0 1.2 +0.25 2.0 +0.25 0.563
2.5 3.0 6 3.8 5.0 1.6 +0.25 2.0 +0.25 0.520
2.5 3.0 6 3.8 4.5 2.0 +0.25 2.5 +0.25 0.547
2.5 3.0 6 3.8 5.0 2.5 +0.25 3.0 +0.25 0.553
3 3.5 6 4.5 4.5 1.2 +0.25 2.0 +0.25 0.402
3 3.5 6 4.5 6.0 1.2 +0.25 2.0 +0.25 0.703
3 3.5 6 4.5 7.0 1.2 +0.25 5.0 +0.30 0.955
3 3.5 6 4.5 9.0 1.2 +0.25 5.0 +0.30 1.289
3 3.5 6 4.5 4.5 1.6 +0.25 2.0 +0.25 0.419
3 3.5 6 4.5 6.0 1.6 +0.25 2.0 +0.25 0.670
3 3.5 6 4.5 7.0 1.6 +0.25 5.0 +0.30 0.925
3 3.5 6 4.5 9.0 1.6 +0.25 5.0 +0.30 1.560
3 3.5 6 4.5 5.0 2.0 +0.25 2.5 +0.25 0.444
3 3.5 6 4.5 6.5 2.0 +0.25 2.5 +0.25 0.695
3 3.5 6 4.5 7.0 2.0 +0.25 5.0 +0.30 0.877
3 3.5 6 4.5 9.0 2.0 +0.25 5.0 +0.30 1.211
3 3.5 6 4.5 5.5 2.5 +0.25 3.0 +0.25 0.468
3 3.5 6 4.5 7.0 2.5 +0.25 3.0 +0.25 0.719
3 3.5 6 4.5 7.0 2.5 +0.25 5.0 +0.30 0.628
3 3.5 6 4.5 9.0 2.5 +0.25 5.0 +0.30 1.162
3 3.5 6 4.5 6.0 3.0 +0.25 3.5 +0.30 0.493
3 3.5 6 4.5 7.5 3.0 +0.25 3.5 +0.30 0.744
3 3.5 6 4.5 7.0 3.0 +0.25 5.0 +0.30 0.779
3 3.5 6 4.5 9.0 3.0 +0.25 5.0 +0.30 1.114
3 3.5 6 4.5 6.5 3.5 +0.30 4.0 +0.30 0.518
3 3.5 6 4.5 8.0 3.5 +0.30 4.0 +0.30 0.769
3 3.5 6 4.5 7.0 3.5 +0.30 5.0 +0.30 0.730
3 3.5 6 4.5 9.0 3.5 +0.30 5.0 +0.30 1.065
4 4.5 8 5.5 5.0 1.6 +0.25 2.0 +0.25 0.999
4 4.5 8 5.5 7.0 1.6 +0.25 2.0 +0.25 1.445
4 4.5 8 5.5 10.0 1.6 +0.25 7.0 +0.36 2.465
4 4.5 8 5.5 12.0 1.6 +0.25 7.0 +0.36 3.075
4 4.5 8 5.5 5.5 2.0 +0.25 2.5 +0.25 1.029
4 4.5 8 5.5 7.5 2.0 +0.25 2.5 +0.25 1.476
4 4.5 8 5.5 10.0 2.0 +0.25 7.0 +0.36 2.360
4 4.5 8 5.5 12.0 2.0 +0.25 7.0 +0.36 2.970
4 4.5 8 5.5 6.0 2.5 +0.25 3.0 +0.25 1.060
4 4.5 8 5.5 8.0 2.5 +0.25 3.0 +0.25 1.507
4 4.5 8 5.5 10.0 2.5 +0.25 7.0 +0.36 2.255
4 4.5 8 5.5 12.0 2.5 +0.25 7.0 +0.36 2.865
4 4.5 8 5.5 6.5 3.0 +0.25 3.5 +0.30 1.091
4 4.5 8 5.5 8.5 3.0 +0.25 3.5 +0.30 1.538
4 4.5 8 5.5 10.0 3.0 +0.25 7.0 +0.36 2.150
4 4.5 8 5.5 12.0 3.0 +0.25 7.0 +0.36 2.760
4 4.5 8 5.5 7.0 3.5 +0.30 4.0 +0.30 1.122
4 4.5 8 5.5 9.0 3.5 +0.30 4.0 +0.30 1.569
4 4.5 8 5.5 10.0 3.5 +0.30 7.0 +0.36 2.045
4 4.5 8 5.5 12.0 3.5 +0.30 7.0 +0.36 2.665
4 4.5 8 5.5 7.5 4.0 +0.30 4.5 +0.30 1.153
4 4.5 8 5.5 9.5 4.0 +0.30 4.5 +0.30 1.600
4 4.5 8 5.5 10.0 4.0 +0.30 7.0 +0.36 1.940
4 4.5 8 5.5 12.0 4.0 +0.30 7.0 +0.36 2.550
4 4.5 8 5.5 8.0 4.5 +0.30 5.0 +0.30 1.184
4 4.5 8 5.5 10.0 4.5 +0.30 5.0 +0.30 1.631
4 4.5 8 5.5 10.0 4.5 +0.30 7.0 +0.36 1.835
4 4.5 8 5.5 12.0 4.5 +0.30 7.0 +0.36 2.445
5 5.5 9 6.5 6.5 2.0 +0.25 2.5 +0.25 1.616
5 5.5 9 6.5 8.5 2.0 +0.25 2.5 +0.25 2.074
5 5.5 9 6.5 11.0 2.0 +0.25 8.0 +0.36 3.082
5 5.5 9 6.5 14.0 2.0 +0.25 8.0 +0.36 4.124
5 5.5 9 6.5 7.0 2.5 +0.25 3.0 +0.25 1.653
5 5.5 9 6.5 9.0 2.5 +0.25 3.0 +0.25 2.112
5 5.5 9 6.5 11.0 2.5 +0.25 8.0 +0.36 2.962
5 5.5 9 6.5 14.0 2.5 +0.25 8.0 +0.36 4.004
5 5.5 9 6.5 7.5 3.0 +0.25 3.5 +0.30 1.690
5 5.5 9 6.5 9.5 3.0 +0.25 3.5 +0.30 2.149
5 5.5 9 6.5 11.0 3.0 +0.25 8.0 +0.36 2.842
5 5.5 9 6.5 14.0 3.0 +0.25 8.0 +0.36 3.884
5 5.5 9 6.5 8.0 3.5 +0.30 4.0 +0.30 1.727
5 5.5 9 6.5 10.0 3.5 +0.30 4.0 +0.30 2.186
5 5.5 9 6.5 11.0 3.5 +0.30 8.0 +0.36 2.722
5 5.5 9 6.5 14.0 3.5 +0.30 8.0 +0.36 3.764
5 5.5 9 6.5 8.5 4.0 +0.30 4.5 +0.30 1.764
5 5.5 9 6.5 10.5 4.0 +0.30 4.5 +0.30 2.223
5 5.5 9 6.5 11.0 4.0 +0.30 8.0 +0.36 2.602
5 5.5 9 6.5 14.0 4.0 +0.30 8.0 +0.36 3.644
5 5.5 9 6.5 9.0 4.5 +0.30 5.0 +0.30 1.801
5 5.5 9 6.5 11.0 4.5 +0.30 5.0 +0.30 2.260
5 5.5 9 6.5 11.0 4.5 +0.30 8.0 +0.36 2.482
5 5.5 9 6.5 14.0 4.5 +0.30 8.0 +0.36 3.524
6 6.5 10 7.5 8.0 2.5 +0.25 3.0 +0.25 1.832
6 7.0 12 9.0 10.0 2.5 +0.25 3.0 +0.25 4.594
6 6.5 10 7.5 13.0 2.5 +0.25 10.0 +0.36 3.902
6 7.0 12 9.0 18.0 2.5 +0.25 10.0 +0.36 10.279
6 6.5 10 7.5 8.5 3.0 +0.25 3.5 +0.25 1.886
6 7.0 12 9.0 10.5 3.0 +0.25 3.5 +0.25 4.693
6 6.5 10 7.5 13.0 3.0 +0.25 10.0 +0.36 3.767
6 7.0 12 9.0 18.0 3.0 +0.25 10.0 +0.36 10.084
6 6.5 10 7.5 9.0 3.5 +0.30 4.0 +0.25 1.929
6 7.0 12 9.0 11.0 3.5 +0.30 4.0 +0.25 4.792
6 6.5 10 7.5 13.0 3.5 +0.30 10.0 +0.36 3.631
6 7.0 12 9.0 18.0 3.5 +0.30 10.0 +0.36 9.888
6 6.5 10 7.5 9.5 4.0 +0.30 4.5 +0.25 1.973
6 7.0 12 9.0 11.0 4.0 +0.30 4.5 +0.25 4.891
6 6.5 10 7.5 13.0 4.0 +0.30 10.0 +0.36 3.496
6 7.0 12 9.0 18.0 4.0 +0.30 10.0 +0.36 9.693
6 6.5 10 7.5 10.0 4.5 +0.30 6.0 +0.30 2.016
6 7.0 12 9.0 12.0 4.5 +0.30 6.0 +0.30 4.991
6 6.5 10 7.5 13.0 4.5 +0.30 10.0 +0.36 3.336
6 7.0 12 9.0 18.0 4.5 +0.30 10.0 +0.36 9.498
6 6.5 10 7.5 10.5 5.0 +0.30 5.5 +0.30 2.069
6 7.0 12 9.0 13.0 5.0 +0.30 5.5 +0.30 5.091
6 6.5 10 7.5 13.0 5.0 +0.30 10.0 +0.36 3.224
6 7.0 12 9.0 18.0 5.0 +0.30 10.0 +0.36 9.302
8 8.5 12 9.5 9.5 3.0 +0.25 3.5 +0.40 2.665
8 9.0 14 11.0 14.0 3.0 +0.25 3.5 +0.40 6.215
8 8.5 12 9.5 16.0 3.0 +0.25 12.0 +0.43 6.327
8 9.0 14 11.0 22.0 3.0 +0.25 12.0 +0.43 15.354
8 8.5 12 9.5 10.0 3.5 +0.30 4.0 +0.30 2.981
8 9.0 14 11.0 14.0 3.5 +0.30 4.0 +0.30 7.929
8 8.5 12 9.5 16.0 3.5 +0.30 12.0 +0.43 6.160
8 9.0 14 11.0 22.0 3.5 +0.30 12.0 +0.43 15.121
8 8.5 12 9.5 10.5 4.0 +0.30 4.5 +0.30 2.977
8 9.0 14 11.0 15.0 4.0 +0.30 4.5 +0.30 8.463
8 8.5 12 9.5 16.0 4.0 +0.30 12.0 +0.43 5.994
8 9.0 14 11.0 22.0 4.0 +0.30 12.0 +0.43 14.889
8 8.5 12 9.5 11.0 4.5 +0.30 5.0 +0.30 3.033
8 9.0 14 11.0 15.0 4.5 +0.30 5.0 +0.30 8.177
8 8.5 12 9.5 16.0 4.5 +0.30 12.0 +0.43 5.827
8 9.0 14 11.0 32.0 4.5 +0.30 12.0 +0.43 14.656
8 8.5 12 9.5 11.5 5.0 +0.30 6.5 +0.30 3.089
8 9.0 14 11.0 16.0 5.0 +0.30 6.5 +0.30 8.711
8 8.5 12 9.5 16.0 5.0 +0.30 12.0 +0.43 5.660
8 9.0 14 11.0 22.0 5.0 +0.30 12.0 +0.43 14.424





Таблица 2

d d1 D D1 L l l1 Ориентировочное число зубьев насечки Масса, г
номин. пред. откл. номин. пред. откл.
2 2.2 4.5 3.0 3.5 1.0 +0.25 1.5 +0.25 21-48 0.275
2 2.2 5.0 3.0 4.5 1.0 +0.25 1.5 +0.25 21-48 0.468
2 2.2 4.5 3.0 4.0 1.2 +0.25 2.0 +0.25 21-48 0.308
2 2.2 5.0 3.0 5.0 1.2 +0.25 2.0 +0.25 21-48 0.521
2 2.2 4.5 3.0 4.0 1.6 +0.25 2.0 +0.25 21-48 0.287
2 2.2 5.0 3.0 5.0 1.6 +0.25 2.0 +0.25 21-48 0.488
2 2.2 4.5 3.0 4.5 2.0 +0.25 2.5 +0.25 21-48 0.300
2 2.2 5.0 3.0 5.5 2.0 +0.25 2.5 +0.25 21-48 0.504
2 2.2 4.5 3.0 5.0 2.5 +0.25 3.0 +0.25 21-48 0.313
2 2.2 5.0 3.0 6.0 2.5 +0.25 3.0 +0.25 21-48 0.517
2.5 3.0 5.5 3.8 3.5 1.0 +0.25 1.5 +0.25 21-48 0.397
2.5 3.0 6.0 3.8 4.5 1.0 +0.25 1.5 +0.25 21-48 0.670
2.5 3.0 5.5 3.8 4.0 1.2 +0.25 2.0 +0.25 21-48 0.443
2.5 3.0 6.0 3.8 5.0 1.2 +0.25 2.0 +0.25 21-48 0.727
2.5 3.0 5.5 3.8 4.0 1.6 +0.25 2.0 +0.25 21-48 0.414
2.5 3.0 6.0 3.8 5.0 1.6 +0.25 2.0 +0.25 21-48 0.687
2.5 3.0 5.5 3.8 4.5 2.0 +0.25 2.5 +0.25 21-48 0.431
2.5 3.0 6.0 3.8 5.5 2.0 +0.25 2.5 +0.25 21-48 0.704
2.5 3.0 5.5 3.8 5.0 2.5 +0.25 3.0 +0.25 21-48 0.448
2.5 3.0 6.0 3.8 6.0 2.5 +0.25 3.0 +0.25 21-48 0.721
3 3.5 6.0 4.5 4.5 1.2 +0.25 2.0 +0.25 21-48 0.595
3 3.5 6.0 4.5 6.0 1.2 +0.25 2.0 +0.25 21-48 0.846
3 3.5 6.0 4.5 9.0 1.2 +0.25 5.0 +0.30 21-48 1.289
3 3.5 6.0 4.5 4.5 1.6 +0.25 2.0 +0.25 21-48 0.566
3 3.5 6.0 4.5 6.0 1.6 +0.25 2.0 +0.25 21-48 0.817
3 3.5 6.0 4.5 9.0 1.6 +0.25 5.0 +0.30 21-48 1.260
3 3.5 6.0 4.5 5.0 2.0 +0.25 2.5 +0.25 21-48 0.591
3 3.5 6.0 4.5 6.5 2.0 +0.25 2.5 +0.25 21-48 0.842
3 3.5 6.0 4.5 9.0 2.0 +0.25 5.0 +0.30 21-48 1.211
3 3.5 6.0 4.5 5.5 2.5 +0.25 3.0 +0.25 21-48 0.616
3 3.5 6.0 4.5 7.0 2.5 +0.25 3.0 +0.25 21-48 0.867
3 3.5 6.0 4.5 9.0 2.5 +0.25 5.0 +0.30 21-48 1.162
3 3.5 6.0 4.5 6.0 3.0 +0.25 3.5 +0.30 21-48 0.641
3 3.5 6.0 4.5 7.5 3.0 +0.25 3.5 +0.30 21-48 0.892
3 3.5 6.0 4.5 9.0 3.0 +0.25 5.0 +0.30 21-48 1.114
3 3.5 6.0 4.5 6.5 3.5 +0.30 4.0 +0.30 21-48 0.666
3 3.5 6.0 4.5 8.0 3.5 +0.30 4.0 +0.30 21-48 0.917
3 3.5 6.0 4.5 9.0 3.5 +0.30 5.0 +0.30 21-48 1.065
4 4.5 8.0 5.5 5.0 1.6 +0.25 2.0 +0.25 23-62 1.121
4 4.5 8.0 5.5 7.0 1.6 +0.25 2.0 +0.25 23-62 1.716
4 4.5 8.0 5.5 12.0 1.6 +0.25 7.0 +0.36 23-62 3.075
4 4.5 8.0 5.5 5.5 2.0 +0.25 2.5 +0.30 23-62 1.152
4 4.5 8.0 5.5 7.5 2.0 +0.25 2.5 +0.30 23-62 1.747
4 4.5 8.0 5.5 12.0 2.0 +0.25 7.0 +0.36 23-62 2.970
4 4.5 8.0 5.5 6.0 2.5 +0.25 3.0 +0.30 23-62 1.183
4 4.5 8.0 5.5 8.0 2.5 +0.25 3.0 +0.30 23-62 1.778
4 4.5 8.0 5.5 12.0 2.5 +0.25 7.0 +0.36 23-62 2.865
4 4.5 8.0 5.5 6.5 3.0 +0.25 3.5 +0.30 23-62 1.214
4 4.5 8.0 5.5 8.5 3.0 +0.25 3.5 +0.30 23-62 1.809
4 4.5 8.0 5.5 12.0 3.0 +0.25 7.0 +0.36 23-62 2.760
4 4.5 8.0 5.5 7.0 3.5 +0.30 4.0 +0.30 23-62 1.245
4 4.5 8.0 5.5 9.0 3.5 +0.30 4.0 +0.30 23-62 1.840
4 4.5 8.0 5.5 12.0 3.5 +0.30 7.0 +0.36 23-62 2.665
4 4.5 8.0 5.5 7.5 4.0 +0.30 4.5 +0.30 23-62 1.276
4 4.5 8.0 5.5 9.5 4.0 +0.30 4.5 +0.30 23-62 1.871
4 4.5 8.0 5.5 12.0 4.0 +0.30 7.0 +0.36 23-62 2.550
4 4.5 8.0 5.5 8.0 4.5 +0.30 5.0 +0.30 23-62 1.307
4 4.5 8.0 5.5 10.0 4.5 +0.30 5.0 +0.30 23-62 1.902
4 4.5 8.0 5.5 12.0 4.5 +0.30 7.0 +0.36 23-62 2.445
5 5.5 9.0 6.5 6.5 2.0 +0.25 2.5 +0.25 23-76 1.788
5 5.5 9.0 6.5 8.5 2.0 +0.25 2.5 +0.25 23-76 2.483
5 5.5 9.0 6.5 14.0 2.0 +0.25 8.0 +0.36 23-76 4.124
5 5.5 9.0 6.5 7.0 2.5 +0.25 3.0 +0.25 23-76 1.826
5 5.5 9.0 6.5 9.0 2.5 +0.25 3.0 +0.25 23-76 2.520
5 5.5 9.0 6.5 14.0 2.5 +0.25 8.0 +0.36 23-76 4.004
5 5.5 9.0 6.5 7.5 3.0 +0.25 3.5 +0.30 23-76 1.863
5 5.5 9.0 6.5 9.5 3.0 +0.25 3.5 +0.30 23-76 2.557
5 5.5 9.0 6.5 14.0 3.0 +0.25 8.0 +0.36 23-76 3.874
5 5.5 9.0 6.5 8.0 3.5 +0.30 4.0 +0.30 23-76 1.900
5 5.5 9.0 6.5 10.0 3.5 +0.30 4.0 +0.30 23-76 2.594
5 5.5 9.0 6.5 14.0 3.5 +0.30 8.0 +0.36 23-76 3.764
5 5.5 9.0 6.5 8.5 4.0 +0.30 4.5 +0.30 23-76 1.937
5 5.5 9.0 6.5 10.5 4.0 +0.30 4.5 +0.30 23-76 2.631
5 5.5 9.0 6.5 14.0 4.0 +0.30 8.0 +0.36 23-76 3.644
5 5.5 9.0 6.5 9.0 4.5 +0.30 5.0 +0.30 23-76 1.974
5 5.5 9.0 6.5 11.0 4.5 +0.30 5.0 +0.30 23-76 2.668
5 5.5 9.0 6.5 14.0 4.5 +0.30 8.0 +0.36 23-76 3.524
6 6.5 10.0 7.5 8.0 2.5 +0.25 3.0 +0.25 23-76 2.380
6 7.0 12.0 9.0 10.0 2.5 +0.25 3.0 +0.25 23-76 5.477
6 7.0 12.0 9.0 18.0 2.5 +0.25 10.0 +0.36 23-76 10.279
6 6.5 10.0 7.5 8.5 3.0 +0.25 3.5 +0.30 23-76 2.423
6 7.0 12.0 9.0 10.5 3.0 +0.25 3.5 +0.30 23-76 5.597
6 7.0 12.0 9.0 18.0 3.0 +0.25 10.0 +0.36 23-76 10.861
6 6.5 10.0 7.5 9.0 3.5 +0.30 4.0 +0.30 23-76 2.466
6 7.0 12.0 9.0 11.0 3.5 +0.30 4.0 +0.30 23-76 5.677
6 7.0 12.0 9.0 18.0 3.5 +0.30 10.0 +0.36 23-76 10.084
6 6.5 10.0 7.5 9.5 4.0 +0.30 4.5 +0.30 23-76 2.509
6 7.0 12.0 9.0 11.5 4.0 +0.30 4.5 +0.30 23-76 5.777
6 7.0 12.0 9.0 18.0 4.0 +0.30 10.0 +0.36 23-76 9.693
6 6.5 10.0 7.5 10.0 4.5 +0.30 5.0 +0.30 23-76 2.552
6 7.0 12.0 9.0 12.0 4.5 +0.30 5.0 +0.30 23-76 5.877
6 7.0 12.0 9.0 18.0 4.5 +0.30 10.0 +0.36 23-76 9.498
6 6.5 10.5 7.5 10.5 5.0 +0.30 5.5 +0.30 23-76 2.595
6 7.0 12.0 9.0 13.0 5.0 +0.30 5.5 +0.30 23-76 6.308
6 7.0 12.0 9.0 18.0 5.0 +0.30 10.0 +0.36 23-76 9.302
8 8.5 12.0 9.5 9.5 3.0 +0.25 3.5 +0.30 21-104 3.533
8 9.0 14.0 11.0 14.0 3.0 +0.25 3.5 +0.30 21-104 9.693
8 9.0 14.0 11.0 22.0 3.0 +0.25 12.0 +0.43 21-104 15.887
8 8.5 12.0 9.5 10.0 3.5 +0.30 4.0 +0.30 21-104 3.589
8 9.0 14.0 11.0 14.0 3.5 +0.30 4.0 +0.30 21-104 9.408
8 9.0 14.0 11.0 22.0 3.5 +0.30 12.0 +0.43 21-104 15.654
8 8.5 12.0 9.5 10.5 4.0 +0.30 4.5 +0.30 21-104 3.645
8 9.0 14.0 11.0 15.0 4.0 +0.30 4.5 +0.30 21-104 9.941
8 9.0 14.0 11.0 22.0 4.0 +0.30 12.0 +0.43 21-104 15.522
8 8.5 12.0 9.5 11.0 4.5 +0.30 5.0 +0.30 21-104 3.701
8 9.0 14.0 11.0 15.0 4.5 +0.30 5.0 +0.30 21-104 9.656
8 9.0 14.0 11.0 22.0 4.5 +0.30 12.0 +0.43 21-104 15.189
8 8.5 12.0 9.5 11.0 5.0 +0.30 5.5 +0.30 21-104 3.757
8 9.0 14.0 11.0 16.0 5.0 +0.30 5.5 +0.30 21-104 10.160
8 9.0 14.0 11.0 22.0 5.0 +0.30 12.0 +0.43 21-104 14.957



Пример условного обозначения резьбовой втулки типа 1, диаметром d=2.5 мм, с полем допуска 6Н, длиной L=5 мм, l=1.2 мм, l1=2 мм, класса прочности 4.6 с покрытием 01, толщиной 3 мкм:

Втулка М2,5-6Нх5х1,2х2.46.013 ОСТ 92-8954-78



То же, типа 2, диаметром d=8 мм, с полем допуска 7Н, длиной L=16 мм, l=5 мм, l1=5,5 мм, класса прочности 33 с покрытием 11:

Втулка 2М8х16х5х5,5.33.11 ОСТ 92-8954-78
